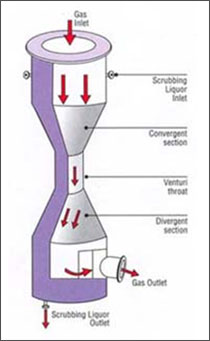

Venturi Scrubber Is a compact scrubber. It comprise of Convergent inlet section, constricted throat followed by divergent outlet section.

• This gas/liquid mixture passes through a flooded elbow, and then enters the entrainment separator through a tangential inlet.
• Centrifugal action removes the heavy wetted particles from the gas stream.
• As an alternate, when very large diameter separators are required, the liquid is separated by passing the stream through a chevron-type mist eliminator baffle.
• The dust/liquid mixture is discharged from the separator bottom drain and the cleaned gas leaves through the top of the separator.

• Capacity : 500 to 2, 00,000 Cfm.
• Pressure Drop : 100 to 400 mmWG.

Applications :-

• Metallurgical plant, basic oxygen, metal melting & sintering furnaces.
• Industrial Incinerators.
• Pulp & paper mills lime sludge.
• Chemical process plant.
• Fly ash removal.
